Clinical visualisation for a single PFT result

Source: R/plot.R
pft_plot.Rd

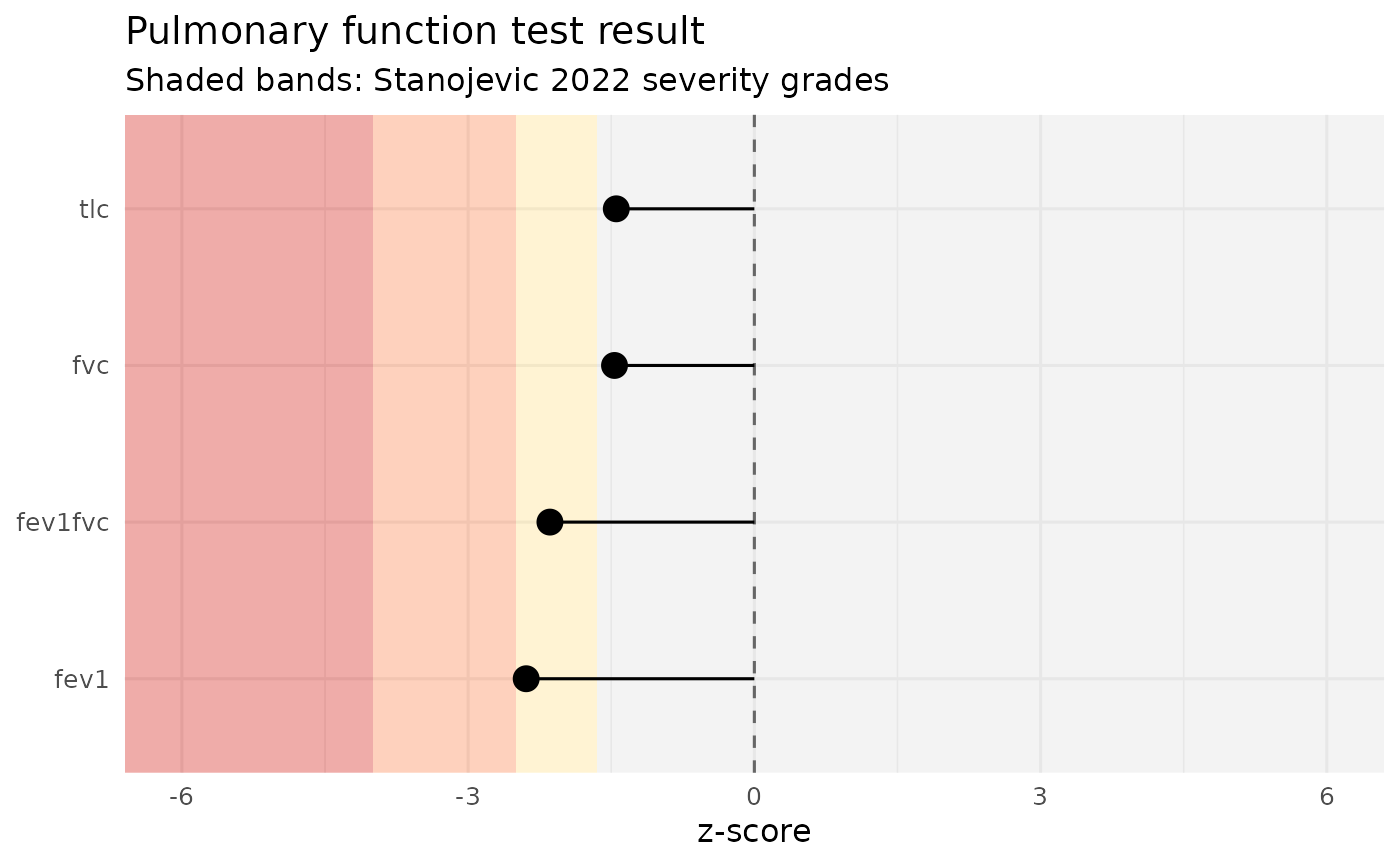

pft_plot() draws a single-patient z-score figure: one row per measure, points at the patient's z-score, shaded reference bands for the four Stanojevic 2022 severity grades returned by pft_severity(): normal (z >= -1.645), mild (-2.5 <= z < -1.645), moderate (-4 <= z < -2.5), and severe (z < -4). The normal band extends symmetrically above zero to the upper limit of normal; values above the ULN are shown but are not a 2022 severity grade.

Requires the ggplot2 package (a Suggested dependency).

Usage

pft_plot(data)

Arguments

data

A single-row data frame produced by pft_interpret(), pft_spirometry(), pft_volumes(), or pft_diffusion() with measured values supplied (i.e. at least one <measure>_zscore column present). Errors if nrow(data) != 1.

Value

A ggplot object.

See also

pft_interpret() for the input data shape.

Examples

patient <- data.frame(
  sex = "M", age = 45, height = 178, race = "Caucasian",
  fev1_measured    = 2.5,
  fvc_measured     = 3.8,
  fev1fvc_measured = 2.5 / 3.8,
  tlc_measured     = 6.0
)
pft_plot(pft_interpret(patient))
